AX52xx

AX52xx

所在地：上海

有效期至：長期有效

最后更新：2017-02-07 15:27

瀏覽次數：2304

單價：面議

產品列表詢價

: 2304人瀏覽過該產品

產品詳細說明

The AX5000 Servo Drive series is available in single- or multi-channel form and is optimised in terms of function and cost-effectiveness. Integrated control technology supports fast and highly dynamic positioning tasks. EtherCAT as a high-performance communication system enables ideal interfacing with PC-based control technology.

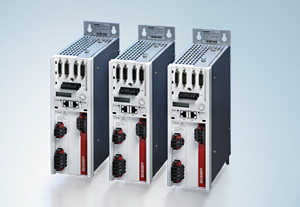

The AX52xx 2-channel Servo Drive enables operation of two motors with identical or even with different capacity, up to a total current of 12 A. The multi-axis drives with variable motor output allocation offer optimised packaging density and costs per drive channel.

The AX5000 system enables simple and fast connection of several AX5000 devices to form a multi-axis system through the “AX-Bridge” quick connection system. The pluggable supply and connection module combines power supply, DC-link and 24 V DC control and braking voltage.

A wide range of motor types can be connected to the AX5000. Motors of different size and type can be connected without additional measures. Examples include synchronous, linear, torque and asynchronous motors. The multi-feedback interface supports all common standards.

The AX5000 was developed specifically for use with the EtherCAT real-time Ethernet system. The outstanding features of EtherCAT are particularly beneficial for Drive Technology. They include short cycle time, synchronicity and simultaneity. EtherCAT enables very short cycle times, even in networks containing a large number of devices.

Features

high-speed EtherCAT system communication
rated current (2-channel Servo Drive): 2 x 1.5 A, 2 x 3 A, 2 x 6 A
wide voltage range: 1 x 100 -10 %…3 x 480 V AC +10 %
active DC-link and brake energy management
multi-feedback interface
flexible motor type selection
scalable, wide range motor current measurement
high-speed capture inputs
diagnostic and parameter display
integrated mains filter Cat. C3, according to EN 61800-3
optional safety functions: restart lock, intelligent TwinSAFE safety functions
compact design for simple control cabinet installation
AX-Bridge – the quick connection system for power supply, DC-link and control voltage
variable cooling concept

Technical data	AX5201	AX5203	AX5206
Rated output current at 50 °C	2 x 1.5 A	2 x 3 A	2 x 6 A (*)
Minimum rated channel current at full current resolution	0.35 A	1 A	1 A
Max. rated channel current at full current resolution (1-phase connection)	3 A	4.5 A	9 A
Max. rated channel current at full current resolution (3-phase connection)	3 A	6 A	9 A
Rated supply voltage	3 x 100 V AC -10 %…3 x 480 V AC +10 % 1 x 100 V AC -10 %…1 x 240 V AC +10 %
DC-link voltage	max. 890 V DC
Peak output current (1)	2 x 5 A	2 x 10 A	2 x 13 A
Peak output current as total device current (1)	10 A	20 A	26 A
Rated apparent power for S1 operation (selection) 120 V (1-/3-phase connection) 230 V (1-/3-phase connection) 400 V (only 3-phase connection) 480 V (only 3-phase connection)	0.6 kVA 1.2 kVA 2.1 kVA 2.5 kVA	1.2 kVA 2.4 kVA 4.2 kVA 5.0 kVA	2.5 kVA 4.8 kVA 8.3 kVA 10.0 kVA
Continuous braking power (2)	50 W	150 W	90 W
Max. braking power (2)	14 kW
Power loss (3)	55 W	85 W	160 W
System bus	EtherCAT
Weight	5.0 kg	6.0 kg	6.0 kg

(1)RMS for max. 7 seconds, (2)internal brake resistor, (3)S1 operation, incl. power supply, without brake chopper

(*)For 1-phase mains the total current is limited to 9 A.

Dimensions	AX5201	AX5203	AX5206
Height without connectors	274 mm
Width	92 mm
Depth without connectors	232 mm

Ordering information	AX520x-0000
AX5201-0000	Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 1.5 A, EtherCAT interface
AX5203-0000	Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 3 A, EtherCAT interface
AX5206-0000	Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 6 A, EtherCAT interface
